What is a Removable IR Cut Filter

A day and night, color network camera delivers color images during the day. As light diminishes below a certain level, the camera can automatically switch to night mode to make use of near infrared (IR) light to deliver high-quality, black and white images.

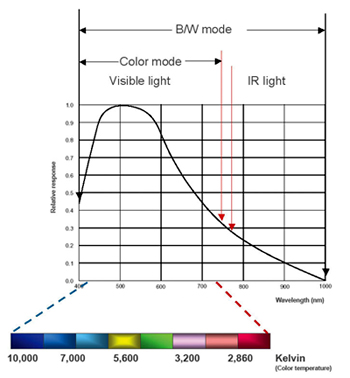

Near-infrared light, which spans from 700 nanometers (nm) up to about 1000 nm, is beyond what the human eye can see, but most camera sensors can detect it and make use of it. During the day, a day and night camera uses an IR-cut filter. IR light is filtered out so that it does not distort the colors of images as the human eye sees them. When the camera is in night (black and white) mode, the IR-cut filter is removed, allowing the camera’s light sensitivity to reach down to 0.1 lux or lower.

One example is Grandstream GXV3611_LL  with light sensitivity of 0.05 lux

Day and night cameras are useful in environments that restrict the use of artificial light. They include low-light video surveillance situations, covert surveillance and discreet applications, for example, in a traffic surveillance situation where bright lights would disturb drivers at night.

An IR illuminator that provides near-infrared light can also be used in conjunction with a day and night camera to further enhance the camera’s ability to produce high-quality video in lowlight or nighttime conditions.
